Bolts to Add a Jackplate 519vx

Jackplate Upgrade for Ranger 519vx

While having the outboard rebuilt, it’s a great time to add a jackplate to the Ranger 519vx. Jackplates allow you to adjust motor height and prop depth, improving both speed and control.

With a direct transom mount (like the Optimax), prop height can’t be changed. Using a jackplate lets you fine-tune the prop’s bite in the water—raise for less drag and more speed, lower for grip under heavy load.

Correct Bolts for Installation

Recommended: Mercury Marine bolt kit for mounting the jackplate to the transom—works great for secure installation.

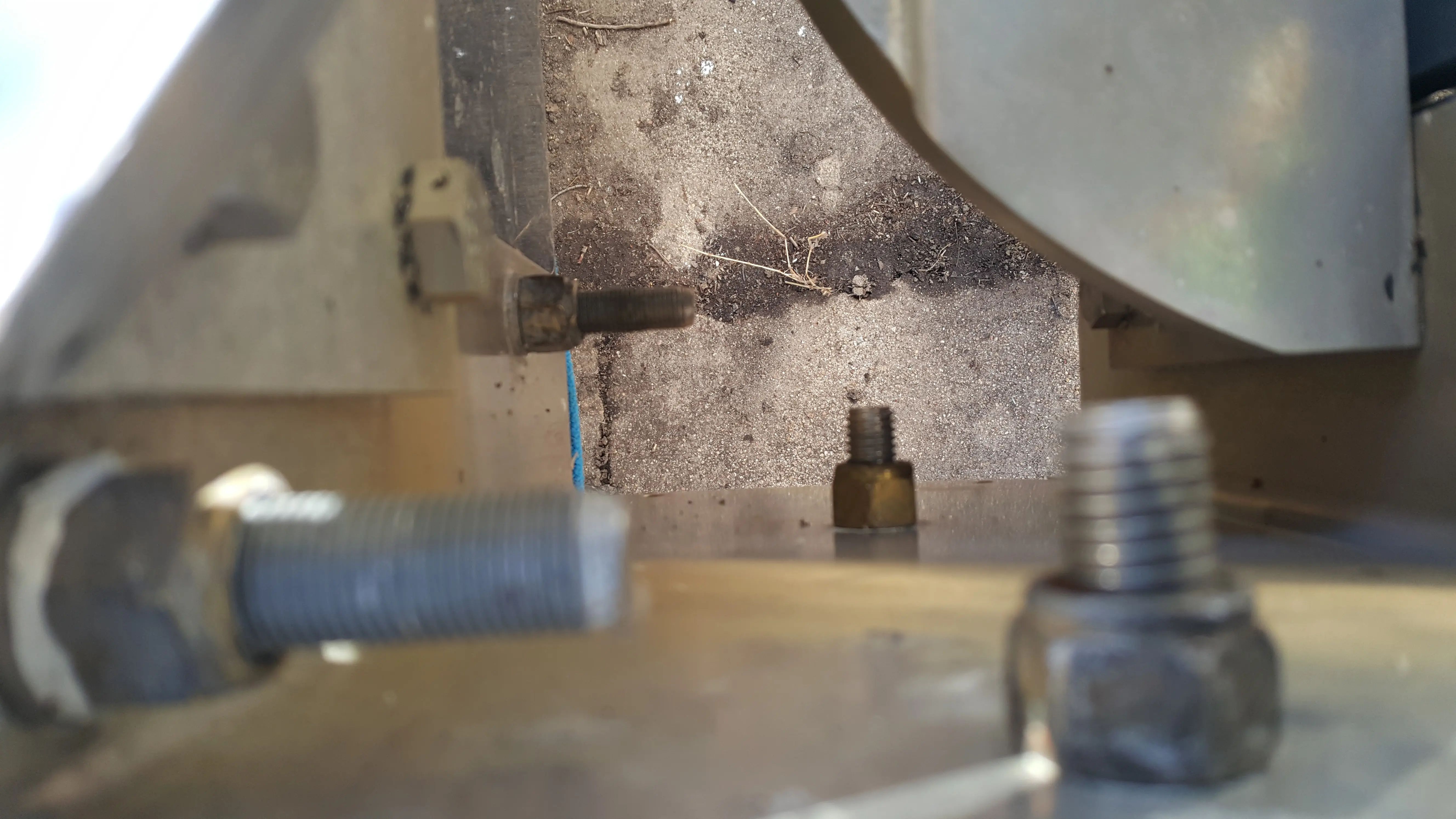

• Long Bolts in Pic. Amount of thread left with 4 inch bolts thru transom

Transom mounting:

• Use 4" stainless steel bolts (4 x 1/2 x 20) for plenty of thread engagement and strength.
• Fine thread bolts with nylock nuts provide extra security.

Motor-to-Jackplate Bolts

The bolts in the Mercury kit are too long for mounting the motor to the jackplate. Use the following hardware for proper fit:

• Upper bolts: 2x — 1/2 x 2 1/2 x 20
• Lower bolts: 2x — 1/2 x 3 x 20

Lower bolts go through a thicker section of aluminum and need extra length past the nylock nut for a secure hold.

Coarse thread bolts (x13) are widely available at local hardware stores and work fine. Make sure all bolts are stainless.

Final Steps & Specs

• Torque all bolts to 80 ft-lbs.
• Add marine-grade silicone to the thru-hull bolts to prevent leaks.

With the right bolts and sturdy install, your Ranger 519vx is ready for improved performance and easy adjustment out on the water.
